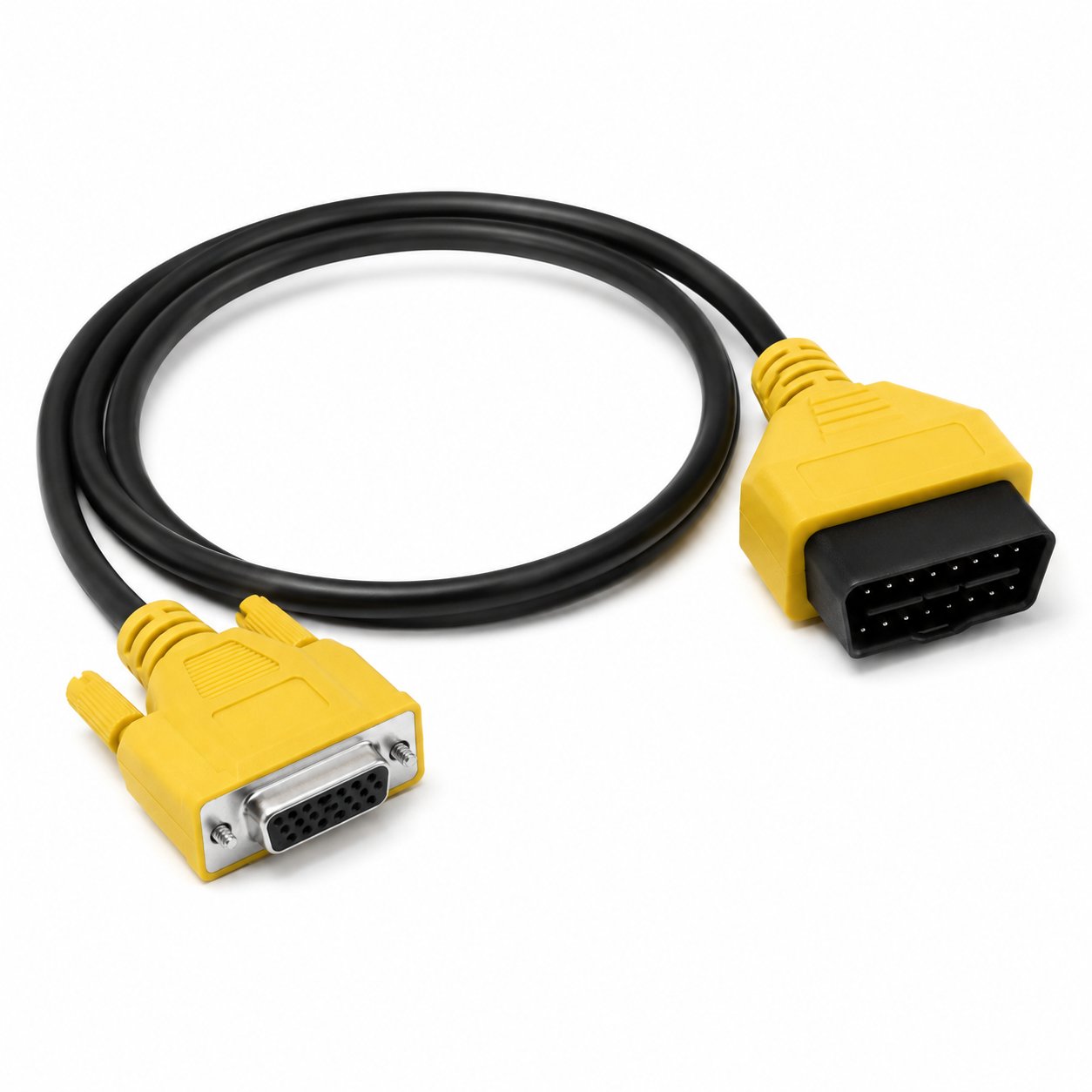

PRIMOTIX HD26 / DB26 Female to OBD2 16-Pin Male Diagnostic Main Cable - 1.5 m

Name: PRIMOTIX HD26 / DB26 Female to OBD2 16-Pin Male Diagnostic Main Cable - 1.5 m
Brand: PRIMOTIX
SKU: PRX-CBL-006
Price: 10.99 USD
Availability: InStock

SKU: PRX-CBL-006PRX-HD26-OBD2-1500

1.5 m passive main cable with a three-row HD26/DB26 female connector and an OBD2/J1962 16-pin male connector.

$10.99USD

Envío cotizado según tu dirección 12-month warranty

No pagues ahora. Envía tu dirección de entrega y realiza un único pago después de aceptar la cotización final del transportista y el total.

Add to cart, or contact via WhatsApp / Email for dedicated support

Flat $9.90 US / $19.90 Intl

12-Month Warranty

DOA Replacement

Tech Support

Key Features

Three-row HD26/DB26 high-density 26-pin female connector

OBD2/J1962 16-pin male connector

Approx. 1.5 m cable length

HD26 positions 1-16 wired to OBD2 positions 1-16

Passive cable - no protocol conversion electronics

Specifications

wiringHD26 1-16 to OBD2 1-16; HD26 17-26 NC

tool sideHD26/DB26 high-density 26-pin female

electronicsNone - passive cable

cable length1.5 m

vehicle sideOBD2/J1962 16-pin male

system voltageCompatible 12 V / 24 V diagnostic systems

Description

HD26 / DB26 female to OBD2 16-pin male diagnostic main cable

This 1.5 m passive main cable connects a compatible diagnostic host fitted with a three-row HD26/DB26 port to an OBD2/J1962 16-pin vehicle connector.

Connections and wiring

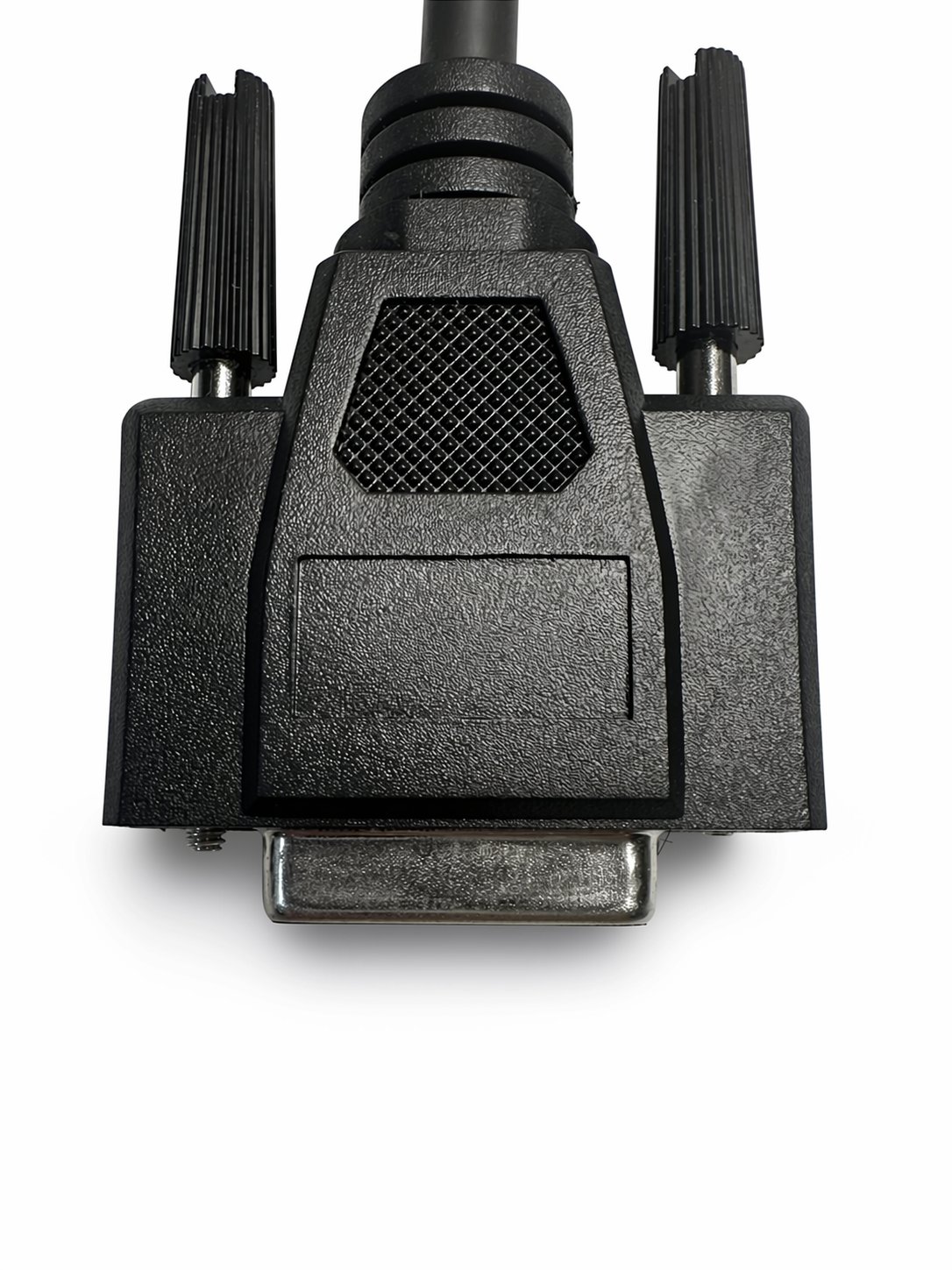

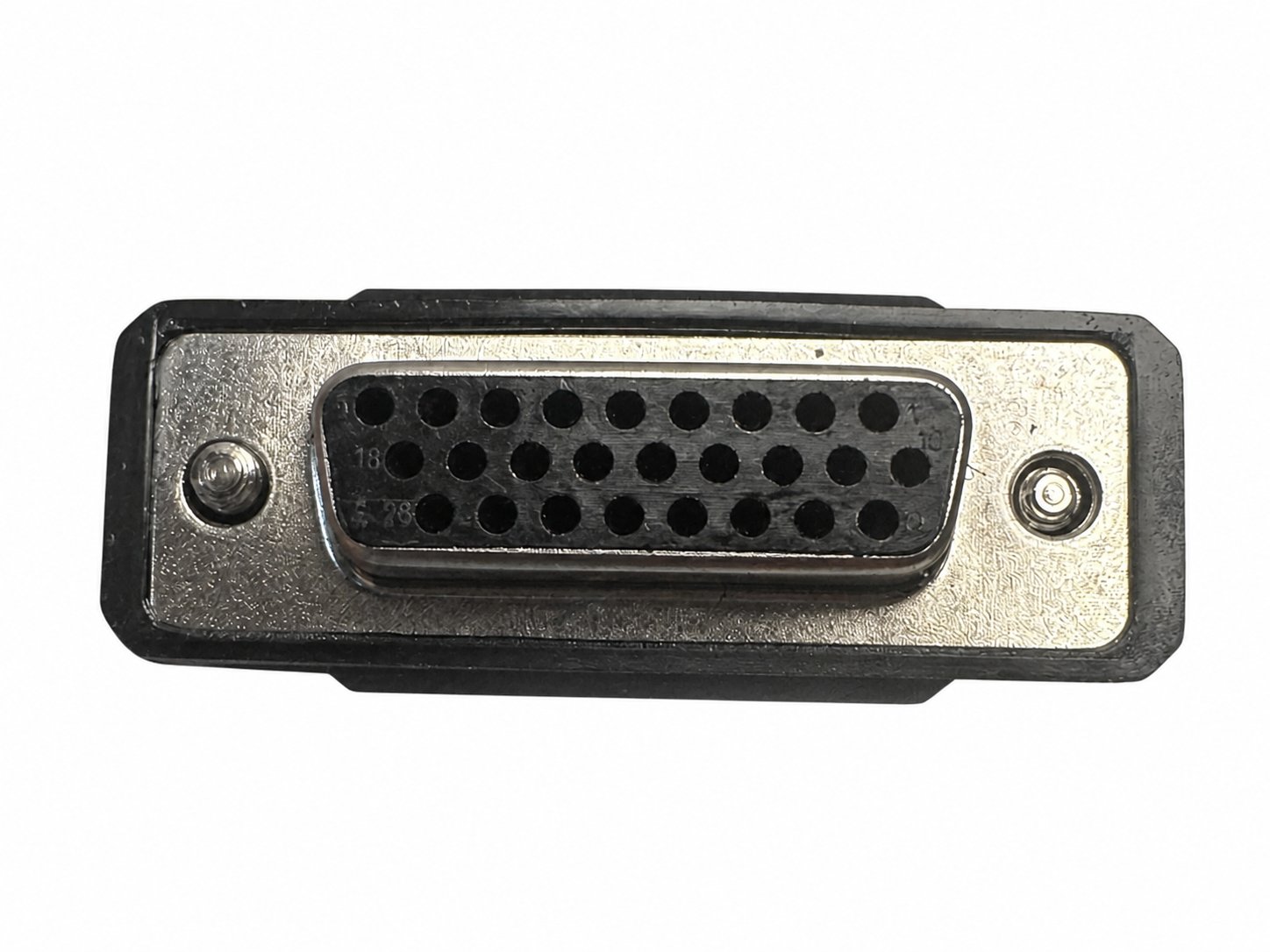

HD26/DB26 high-density 26-pin female connector with thumb screws
OBD2/J1962 16-pin male connector
HD26 positions 1-16 map to OBD2 positions 1-16; HD26 positions 17-26 are not connected
Designed for compatible 12 V / 24 V vehicle diagnostic systems

The cable is passive and contains no protocol converter. The listing is for the cable only.

Verify the mating connector, pin assignment and equipment requirements before purchase or use.
